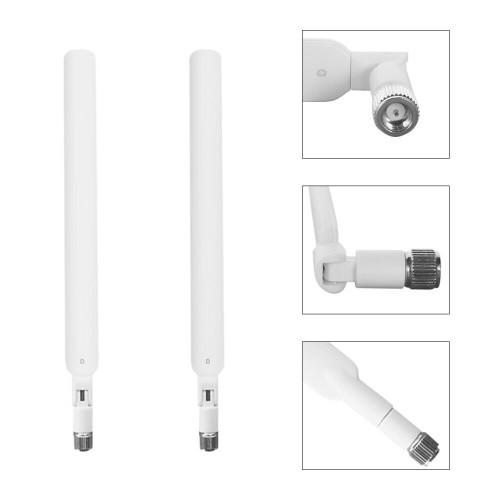

High Gain WiFi LTE 3G 4G External Mobile Antenna for Router or CCTV Camera

Product Code: WiFi LTE 3G 4G indoor Antenna
(රු)LKR1,600
In Stock (100)

  • 698 MHz~2700 MHz Frequency Range

3G 4G LTE Dipole Antenna Wide Band 5dBi 698-2700Mhz Omni Directional GSM Wi-Fi SMA Male 4G Antenna for any Network Devices.

Our LTE Antenna is made for use with 4G LTE modules and devices that require the highest possible efficiency and peak gain to deliver best in class throughput on all major cellular (2g/3g/4g) bands worldwide for routers, access points and terminals.


The antenna is a ground plane independent antenna with a SMA Male connector and swivel mechanism that allows the antenna part to be rotated.

The Apex exhibits high efficiency across the ultra wide band and is backward compatible with 2G and 3G cellular applications.

With very high efficiency on every cellular band globally it is an ideal solution for any device requiring high, reliable performance.


PRODUCT FEATURES:


- Product name : 3G/4G Antenna;

- Part number : GSM-ANT-LTE-R;

- Frequency Range-MHZ : 698-960/1710-2700 Mhz; -

VSWR : ≤ 2.0; - Gain-dBi : 5 (Zenith);

- Polarization : Linear;

- Impedance : 50 Ω;

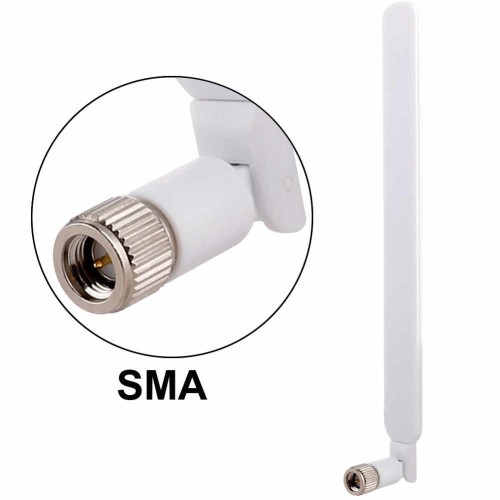

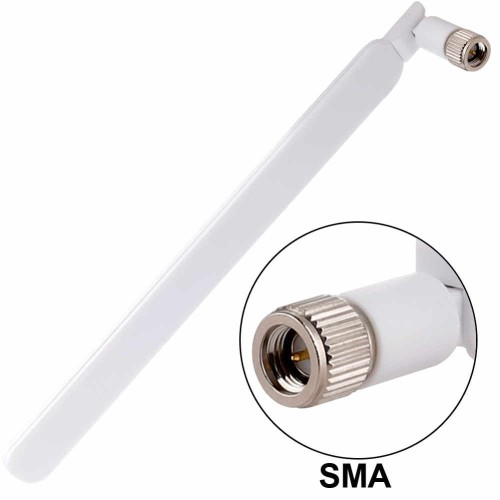

- Connector : SMA Male;

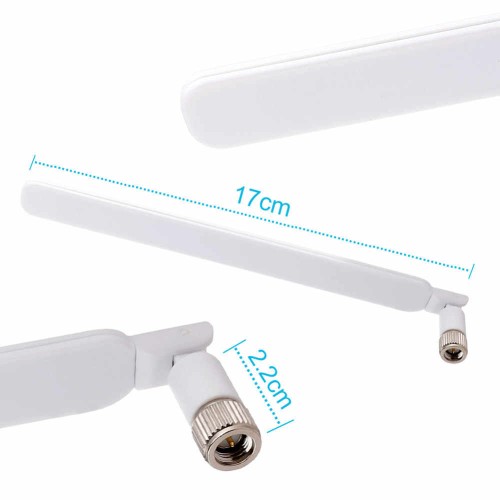

- Dimension : 8.2 to 27 *222mm;

- Net Weight : 20 g;

- Radome Material : Plastic;

- Operating temperature : -40°С ~ +85°С;

- Vibration : 10 to 55 Hz with 1.5 mm amplitude 2 hours;

- Environmentally Friendly : ROHS Compliant.
