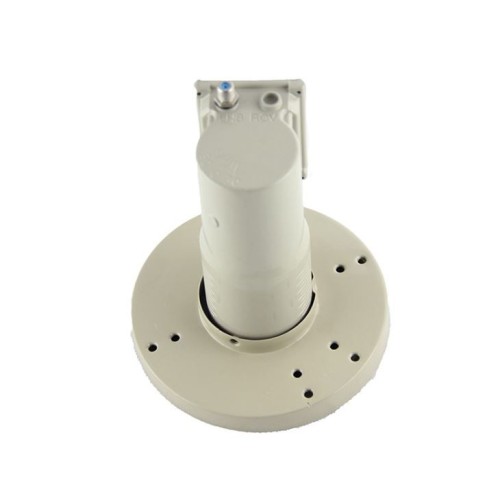

LNB 5G Anti Interference Satellite LNBF C Band

Features :

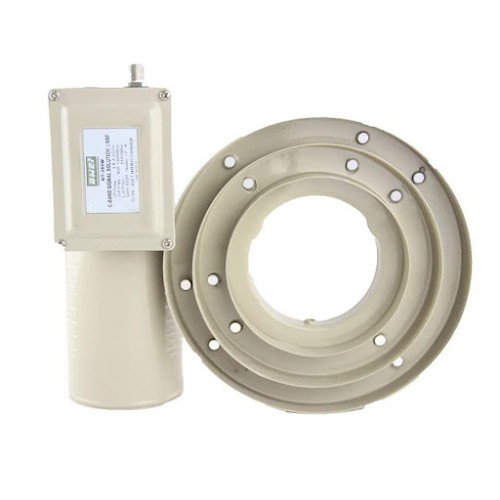

Easy Installation, Scalar ring included
Environmentally sealed and moisture resistant
A broad passband with low insertion loss & high stopband rejection
5G Interference C-Band LNB with single cable solution technology
Rejects 4G/5G terrestrial interference in C-Band signals

Spec1ification

Model Number : BW-CD143742

Input Frequency : 3.7-4.2GHz

Customization : Option 3.4-4.2G

Local Frequency : 5150MHz

Output Frequency : 950-1450MHz

L.O. Stability: ±1.5MHz

Noise Figure :＜17°K typ

Gain :＞65dB typ

Gain Flatness :±1 dBm (max)

Input VSWR :2.5:1 (max)

Output VSWR :2.0:1 (max)

Connector :F-type female

Output Impedance :75Ω

Cross Polar Isolation :20dB (min)

Image Rejection :45dB (min)

Phase Noise :-75dB/Hz@10kHz (max)

Supply Voltage :11.5-14.0V (Vertical Polarization) 16.0-19.0V (Horizontal Polarization)

Operation Temperature :- 40 ℃ to +70℃

Storage Temperature :- 40 ℃ to +80℃

Relative Humidity :0% ~ 95%
