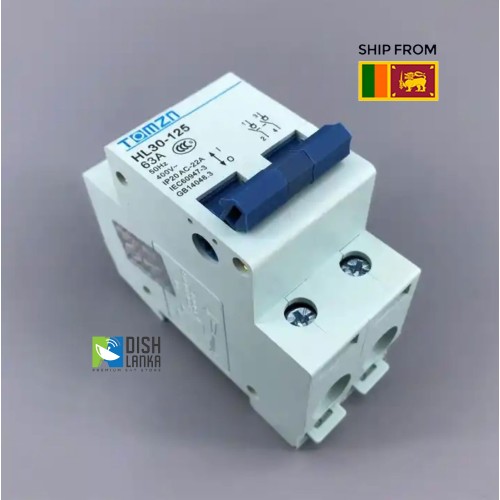

TOMZN Circuit Breaker HL30 2P Main Switch Function Disconnector Switch Isolator Circuit Breaker 63A

• Circuit Breaker
• Function: mini circuit used for line overload, short circuit protection and infrequent conversion of lines. It can also work as on-off switch for load circuits.
• Easy Installation: Modular structure, can be easily installed on the DIN standard guide rail in distribution box, bistable locking clip.
• Applications: miniature circuit breaker is mainly used for the illumination of office buildings and residential buildings. It is used for distribution and protection the facilities from damages caused by overload and short-circuit.

Breakers
Circuit Breaker

HL30 2P series isolating switch is applicable to the power distribution and control circuit with an alternating current of 50HZ/60HZ, rated voltage of 230/400V, and rated current up to 63A as master switch of terminal electrical equipment. It can be used to control various motors, small power electric appliance and illumination etc, It is widely used for industrial and mining enterprises, high buildings, commercial places, home and so on, The produce meets the standards of IEC60947.3

Rate current in: 63A
Number of poles: Two poles

Main specifications
Rated short-time withstand current: 12In, electrifying time 1s
Rated short-time making capacity: 20In, electrifying time 0.1s
Rated making and break capacity: 1.05Ue, 3In, cos∮=0.65
Rated limited short-circuit current:20KA
Operating performance: No load 8500 times, On load 1500 times, 10000 in total, cos∮=0.8, Operating frequency is 120 times/hour.
